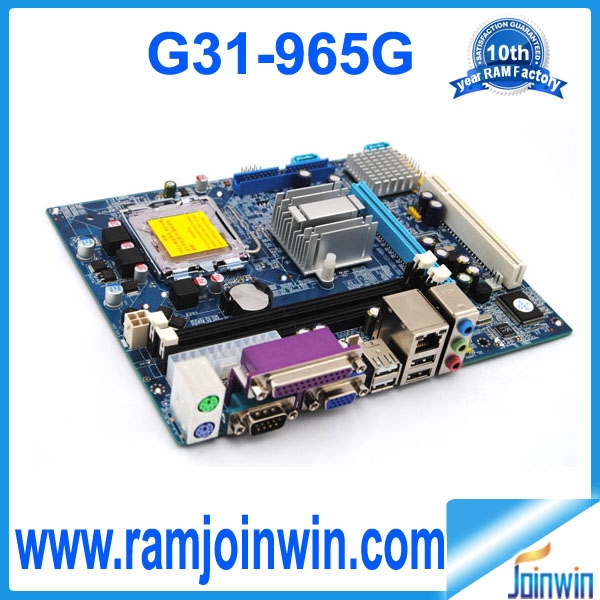

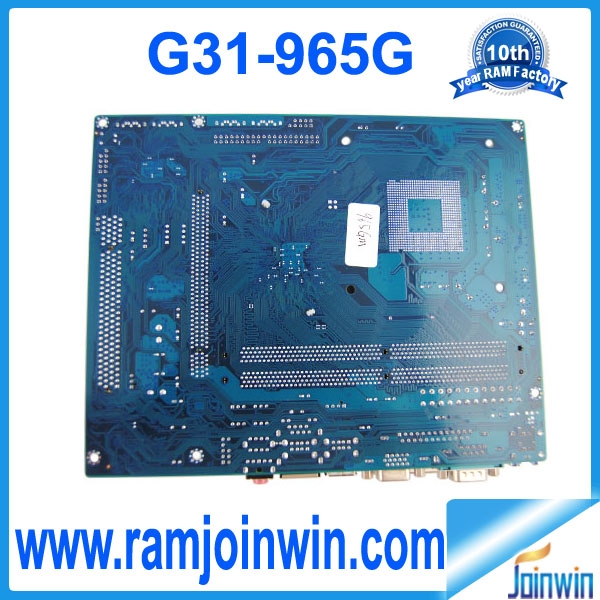

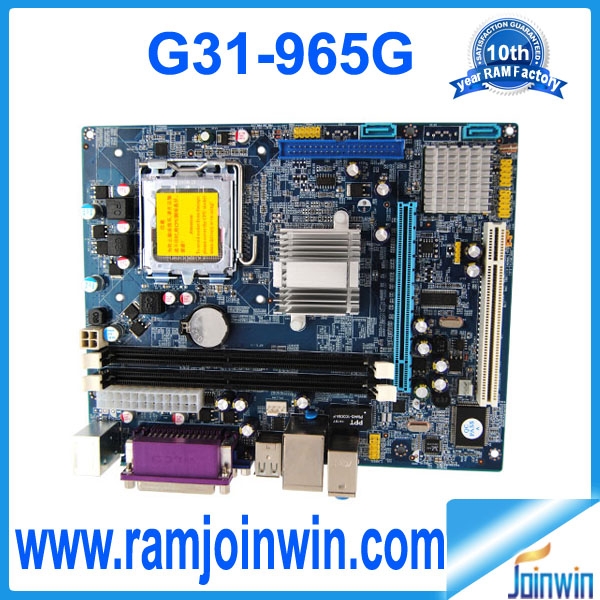

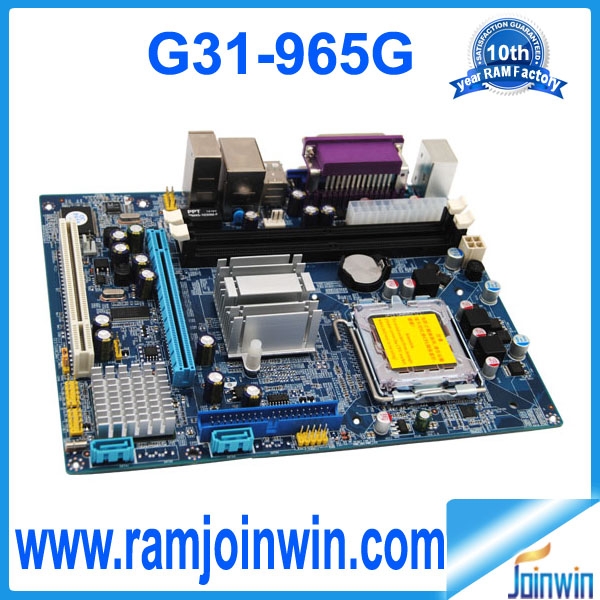

775 ddr2 motherboard with GM965 chipset in large stock
- 775 ddr2 motherboard
- Supports 1066/800/533MHz FSB
- DDR2 800/667/533 memory
- Enjoy 1 year warranty
- Brand OEM available
New arrival motherboard socket 775 ddr2 Supports 1066/800/533MHz FSB
Tel:86-755-8395-2193
Mobile:86-13632905958
Email:sales@joinwinoem.com
MSN:sales@joinwinoem.com
Yahoo:joinwinsale
Skype:joinwin1
| CPU | LGA775 for Intel® Core™ 2 Extreme quad-core / Core™ 2 Extreme dual-core / Core™ 2 Quad / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D |
| Supports 1066/800/533MHz FSB | |
| Chipset | Northbridge: Intel® GM965 Express Chipset |
| Southbridge: Intel® ICH7 | |
| Memory | Supports DDR2 800/667/533 memory |
| Dual Channel architecture support up to 4GB by 2 DIMM slots | |
| Graphics | Intel® Graphics Media Accelerator X3000 |
| 1*VGA port | |
| Audio | Realtek ALC662 6 Channel Audio Codec |
| LAN | Realtek 8105E/8111E 100M/1000M LAN Controller |
| Expansion slots | 1*PCI Express X16 slot |
| 1*PCI slot | |
| I/O connectors | 1*IDE connector |
| 4* SATA 3Gb/s connector | |
| 1*front panel connector | |
| 1*front audio connector | |
| 4*USB 2.0/1.1 connector | |
| 4*USB 2.0/1.1 port | |
| 1*COM port | |
| 1*parallel port | |
| 1*PS/2 port | |
| 1*VGA port | |
| 1*RJ-45 port | |
| 1*audio jacks | |
| Form Factor | 210 x 170mm |

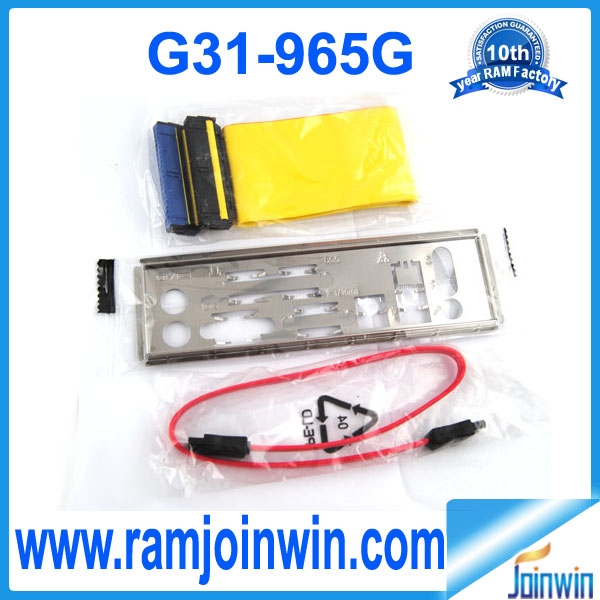

| Packing Include | 1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable |
|
1.We offer life time warranty for memory ram. |
|
2.About the RMA,plz send by EMS within 3KG in one package.Bulk packing is ok. |
|
3.If buyers send by DHL,buyers will undertake the cost of customs. |
|
4.DHL will resend the goods back to buyers if can't be clearance. |
|
5.Buyers pay the shipping cost from buyers to us,but the RMA will free shipping Following with the next order. |
