| CPU |
Supports 3rd Gen(IVY Brige). Intel® 22nm CPUs and 2nd Gen(Sandy Bridge). Intel® Core™ CPUs (LGA1155) |
| Chipset |
Intel® H61 Express Chipset |
| Memory |
Supports DDR3 1333/1066/800 memory |
| Dual Channel architecture support up to 16GB by 2 DIMM slots |
| Graphics |
Integrated Graphics Prosessor |
| 1* DVI port |
| 1*VGA port |
| 1* HDMI port |
| Audio |
Realtek ALC662 6 Channel Audio Codec |
| LAN |
Realtek 8105E/8111E 100M/1000M LAN Controller |
| Expansion slots |
1*PCI Express X16 slot |
| 1* PCI Express X1 slot |
| I/O connectors |
4* SATA 3Gb/s connector |
| 1* front panel connector |
| 1*front audio connector |
| 4*USB 2.0/1.1 connector |
| 4*USB 2.0/1.1 port |
| 1* DVI port |
| 1*COM port |
| 1* HDMI port |
| 1*PS/2 port |
| 1*VGA port |
| 1*RJ-45 port |
| 1*LPT port |
| 1*audio jacks |
| Form Factor |
210 x 170mm |
| Packing Include |

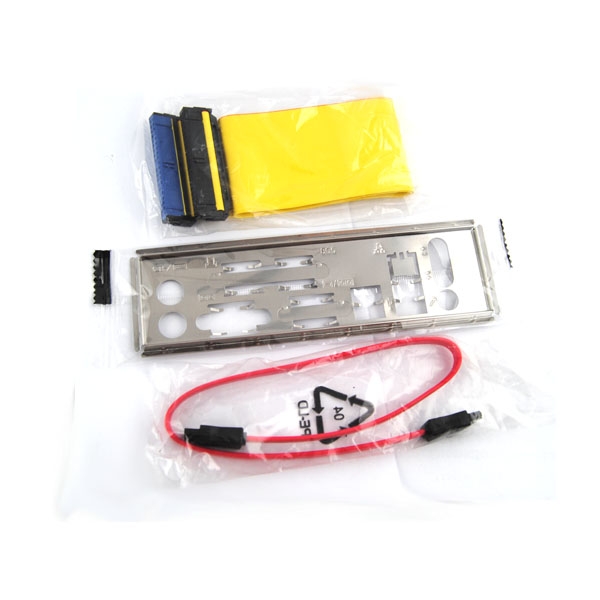

1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable(Optional) |
