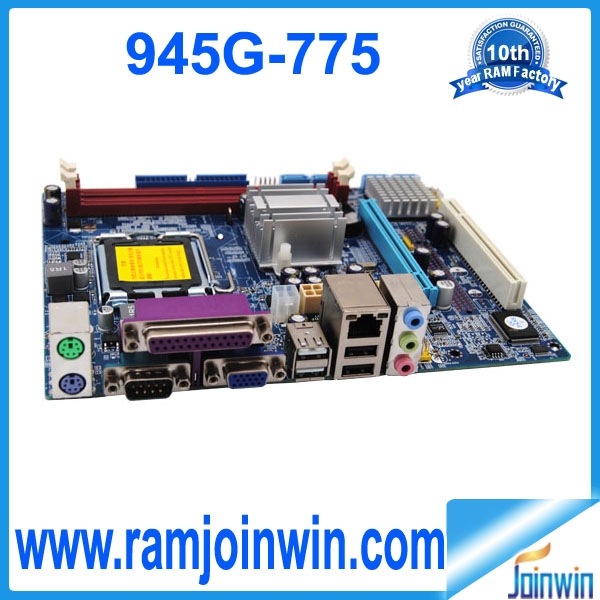

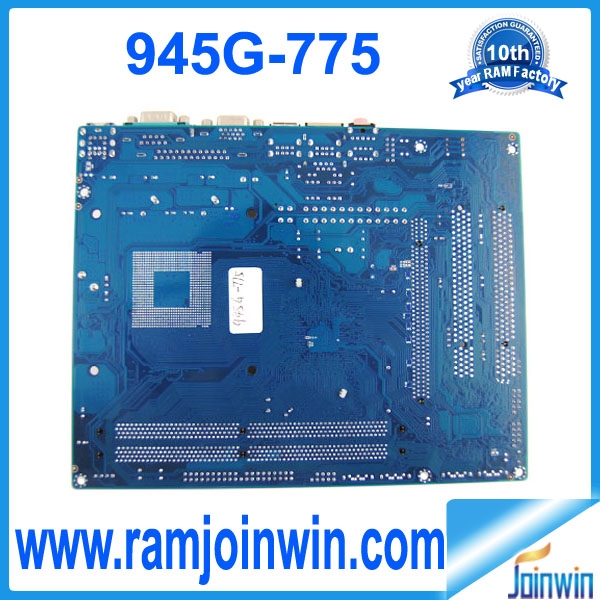

motherboard socket 775 ddr2 with 945G ICH7/ICH7M chipset for desktop 945G-775
- motherboard socket 775 ddr2
- Supports DDR2 533/667/800 memory
- 945G Express Chipset
- Dual channel
- Enjoy 1 year warranty
New arrival 945 motherboard lga775 for desktop support ddr2 533/667/800 memory
Tel:86-755-8395-2193
Mobile:86-13632905958
Email:sales@joinwinoem.com
MSN:sales@joinwinoem.com
Yahoo:joinwinsale
Skype:joinwin1
| CPU | LGA775 for Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D |
| Supports 1066/800/533MHz FSB | |
| Chipset | Northbridge: Intel® 945G Express Chipset |
| Southbridge: Intel® ICH7/ICH7M | |
| Memory | Supports DDR2 533/667/800 memory |
| Dual Channel architecture support up to 4GB by 2 DIMM slots | |
| Graphics | Intel® Graphics Media Accelerator 950 |
| 1*VGA port | |
| Audio | Realtek ALC662 6 Channel Audio Codec |
| LAN | Realtek 8105E 10/100M LAN Controller |
| Expansion slots | 1*PCI Express X16 slot |
| 1*PCI slot | |
| I/O connectors | 1*IDE connector |
| 4 / 2 3.0Gb/s SATA connector | |
| 1*front panel connector | |
| 1*front audio connector | |
| 4*USB 2.0/1.1 connector | |
| 4*USB 2.0/1.1 port | |
| 1*COM port | |
| 1*PS/2 port | |
| 1*VGA port | |
| 1*RJ-45 port | |
| 1*LPT port | |
| 1*audio jacks | |
| Form Factor | 210 x 170mm |

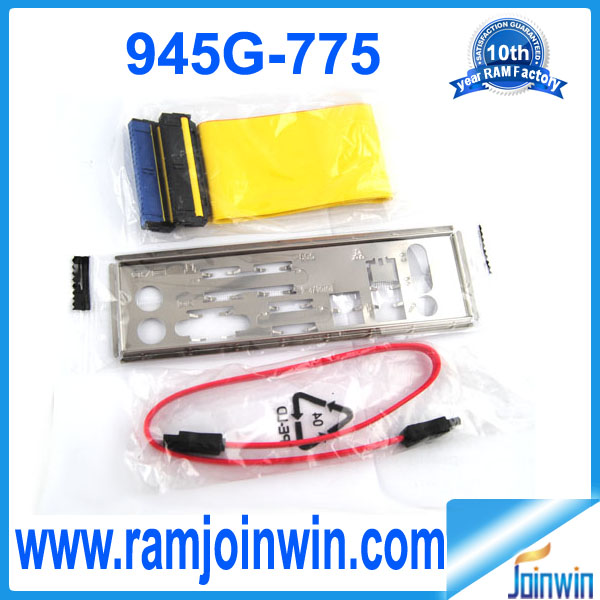

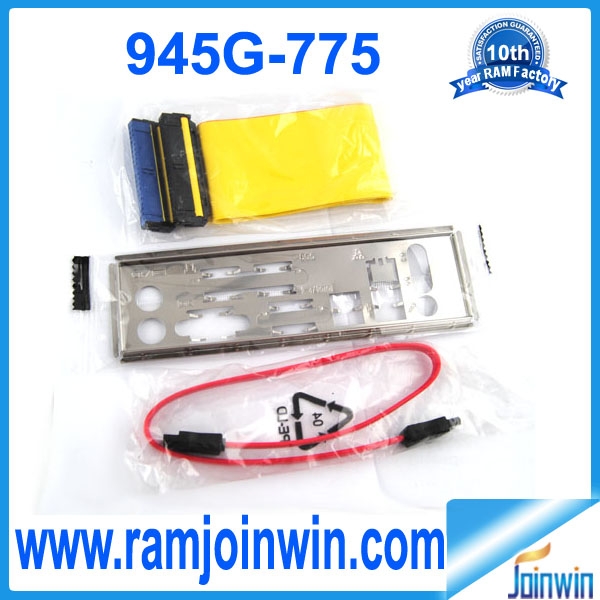

| Packing Include | 1*motherboard;1*SATA Cable;1*Mainboard Driver;1*baffle;1*User Manual;1*IDE Cable |
|
